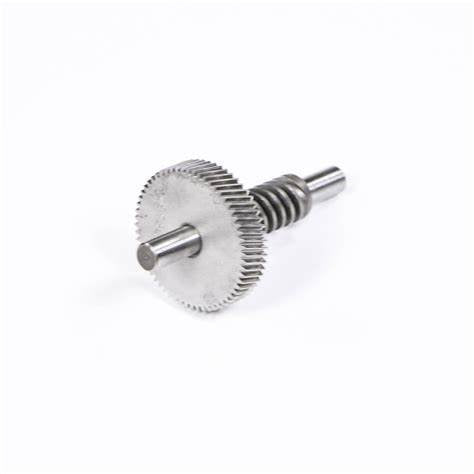

KitchenAid 5 & 6 Qt Worm Gear - WP9709231

KitchenAid 5 & 6 Qt Worm Gear - WP9709231

Regular price $43.99 USD
Regular price Sale price $43.99 USD
Sale Sold out

Genuine KitchenAid 5 Quart and 6 Quart Professional Worm Gear, WP9709231. The worm gear is found in all KitchenAid 6 Quart 600 Pro Stand Mixers, as well as 5 Quart mixers including the KitchenAid 5 Qt Professional HD Stand Mixer and the KitchenAid 5 Quart Professional 5 Plus Stand Mixers. This gear will replace a stripped or worn Worm Gear. This is a genuine KitchenAid Stand Mixer replacement part; all of our parts are New Original KitchenAid Parts.

Constructed of strong alloy, this gear is driven by the main motor shaft and drives the worm follower gear (W11086780). Even slight knicks in this gear can cause the mixer to be excessively loud, cause clicking noises, or cause the beater to skip as it goes around. When replacing this gear make sure to clean off all grease, if you have access to a parts washer that is the best way to clean the gears, but if not WD-40 and paper towels will work. Once the gear is clean inspect each tooth carefully for wear or knicks. Will fit New Generation KitchenAid Mixers KP2671, KP26M1X, KV25, KT2651, KG25, KM25 and variations of these models.

This worm follower gear, part number WP9709231, will replace the 9703446, 9703699, 9706590, 9706769, 9706770, 9709231 worm gear previously made by KitchenAid. PLEASE NOTE, THIS IS THE 60 TOOTH WORM GEAR, THIS WILL WORK ONLY WITH SERIAL NUMBERS STARTING WITH WL45 AND LATER. If you are unsure which gear you need please email us with your complete model number and serial number. This is the Worm gear only does not include the thrust bearing and washers or the bearings.

For the front worm gear bearing click here: Worm Gear Front Bearing - WPW10170080
For the rear worm gear bearing click here: Worm Gear Rear Bearing - WPW10170081
For the Thrust Bearing Washer set click here: Thrust Bearing Washer Set - WP9703445


Will fit the following 5 Quart Professional 5 Plus mixers made by KitchenAid:

  • KV25G0XWW4 Professional 5 Qt. Stand Mixer
  • KV25G0XWH4 Professional 5 Qt. Stand Mixer
  • KV25G0XBU4 Professional 5 Qt. Stand Mixer
  • KV25G0XCV4 Professional 5 Qt. Stand Mixer
  • KV25G0XCY4 Professional 5 Qt. Stand Mixer
  • KV25G0XER4 Professional 5 Qt. Stand Mixer
  • KV25G0XGR4 Professional 5 Qt. Stand Mixer
  • KV25G0XMC4 Professional 5 Qt. Stand Mixer
  • KV25G0XOB4 Professional 5 Qt. Stand Mixer
  • KV25G0XBW4 Professional 5 Qt. Stand Mixer
  • KV25G0XGC4 Professional 5 Qt. Stand Mixer
  • KV25G0XWW5 Professional 5 Qt. Stand Mixer
  • KV25G0XWH5 Professional 5 Qt. Stand Mixer
  • KV25G0XBU5 Professional 5 Qt. Stand Mixer
  • KV25G0XCV5 Professional 5 Qt. Stand Mixer
  • KV25G0XCY5 Professional 5 Qt. Stand Mixer
  • KV25G0XER5 Professional 5 Qt. Stand Mixer
  • KV25G0XGR5 Professional 5 Qt. Stand Mixer
  • KV25G0XMC5 Professional 5 Qt. Stand Mixer
  • KV25G0XOB5 Professional 5 Qt. Stand Mixer
  • KV25G0XBW5 Professional 5 Qt. Stand Mixer
  • KV25G0XGC5 Professional 5 Qt. Stand Mixer
  • KM25G0XWH5 Commercial 5 Qt. Stand Bowl Lift Mixer
Will fit the following 5 Qt Professional HD mixers made by KitchenAid:
  • KG25H0X (Series 4) 5 QT. Professional Stand Mixer
  • KG25H7X (Series 4) 5 QT. Professional Stand Mixer
  • KG25H0X (Series 5) 5 QT. Professional Stand Mixer
  • KG25H7X (Series 5) 5 QT. Professional Stand Mixer
  • KG25H3X (Series 5) 5 QT. Professional Stand Mixer
  • 4KG25H3X (Series 5) 5 QT. Professional Stand Mixer
  • KM25G0XWH4 Commercial Mixer
  • KV25G0XQ (Series) Professional 5 Qt. Stand Mixer
  • 4KV25H0XMC5 Metallic Chrome 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
  • 4KV25H0XWH5 White 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
  • 4KV25H0XBK5 Imperial Black 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
  • 4KV25H0XER5 Empire Red 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
  • kg25h7xsl (Silver) 5 QT. Stand Mixer
  • kg25h3xwh 5 Qt. Stand Mixer
Will Also fit ALL 6 Quart 600 Pro Mixers made by KitchenAid, including model numbers:
  • KP26M1XMR5 Professional 6 Qt. Stand Mixer
  • KP26M1XBS5 Professional 6 Qt. Stand Mixer
  • KP26M1XCM5 Professional 6 Qt. Stand Mixer
  • KP26M1XDP5 Professional 6 Qt. Stand Mixer
  • KP26M1XLC5 Professional 6 Qt. Stand Mixer
  • KP26M1XMC5 Professional 6 Qt. Stand Mixer
  • KP26M1XNP5 Professional 6 Qt. Stand Mixer
  • KP26M1XPM5 Professional 6 Qt. Stand Mixer
  • KP26M1XBP5 Professional 6 Qt. Stand Mixer
  • KP26M1XBR5 Professional 6 Qt. Stand Mixer
  • KP26M1XCE5 Professional 6 Qt. Stand Mixer
  • KP26M1XRC5 Professional 6 Qt. Stand Mixer
  • KP26M1XSV5 Professional 6 Qt. Stand Mixer
  • KP26M1XSE5 Professional 6 Qt. Stand Mixer
  • KP26M1XAZ5 Professional 6 Qt. Stand Mixer
  • KP26M1XER5 Professional 6 Qt. Stand Mixer
  • KP26M1XWG5 Professional 6 Qt. Stand Mixer
  • KP26M1XOB5 Professional 6 Qt. Stand Mixer
  • KP26M1XWH5 Professional 6 Qt. Stand Mixer
  • KP26M1XCV5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XMR5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XBS5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XDP5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XLC5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XMC5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XNP5 Professional 6 Qt. Stand Mixer
  • 4KP26M1XPM5 Professional 6 Qt. Stand Mixer
  • KP26M1XQBF5 Professional 6 Qt. Stand Mixer
  • KP26M1XQBS5 Professional 6 Qt. Stand Mixer
  • KP26M1XQBW5 Professional 6 Qt. Stand Mixer
  • KP26M1XQCV5 Professional 6 Qt. Stand Mixer
  • KP26M1XQER5 Professional 6 Qt. Stand Mixer
  • KP26M1XQGC5 Professional 6 Qt. Stand Mixer
  • KP26M1XQNP5 Professional 6 Qt. Stand Mixer
  • KP26M1XQOB5 Professional 6 Qt. Stand Mixer
  • KP26M1XQPM5 Professional 6 Qt. Stand Mixer
  • KP26M1XQPT5 Professional 6 Qt. Stand Mixer
  • KP26M1XQWH5 Professional 6 Qt. Stand Mixer
  • KP26M1XQCE5 Professional 6 Qt. Stand Mixer
  • KL26M8XOB5 Proline 6 Qt. Bowl Lift Stand Mixer
  • KP26M1XMR4 Professional 6 Qt. Stand Mixer
  • KP26M1XBS4 Professional 6 Qt. Stand Mixer
  • KP26M1XCM4 Professional 6 Qt. Stand Mixer
  • KP26M1XDP4 Professional 6 Qt. Stand Mixer
  • KP26M1XLC4 Professional 6 Qt. Stand Mixer
  • KP26M1XMC4 Professional 6 Qt. Stand Mixer
  • KP26M1XNP4 Professional 6 Qt. Stand Mixer
  • KP26M1XPM4 Professional 6 Qt. Stand Mixer
  • KP26M1XBP4 Professional 6 Qt. Stand Mixer
  • KP26M1XBR4 Professional 6 Qt. Stand Mixer
  • KP26M1XCE4 Professional 6 Qt. Stand Mixer
  • KP26M1XRC4 Professional 6 Qt. Stand Mixer
  • KP26M1XSV4 Professional 6 Qt. Stand Mixer
  • KP26M1XSE4 Professional 6 Qt. Stand Mixer
  • KP26M1XAZ4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XMR4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XBS4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XDP4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XLC4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XMC4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XNP4 Professional 6 Qt. Stand Mixer
  • 4KP26M1XPM4 Professional 6 Qt. Stand Mixer
  • KB26G1X (Series 3) 6 QT. Stand Mixer
  • KB26G1X (Series 5) 6 QT. Stand Mixer
  • KD2661 6 QT. Stand Mixer
  • KT2651 6 QT. Stand Mixer
  • KP2671 6 QT. Stand Mixer
  • KT2651XWW3 6 QT. Stand Mixer
  • KD2661X 6 Qt. Stand Mixer
  • KT2651X 6 Qt. Stand Mixer
  • KP2671X 6 Qt. Stand Mixer
  • KP2671-3 6 QT. Stand Mixer
  • KT2651?3 6 QT. Stand Mixer
  • KD2661?3 6 QT. Stand Mixer
  • KP2671XWH1 6 Quart Stand Mixer
  • KP2671XWH2 6 Quart Stand Mixer
  • KP2671XWH3 6 Quart Stand Mixer
