6 Qt Professional 6000 Diagrams

KitchenAid 6 Quart Professional 6000 Parts Diagrams

6 Quart Professional 6000 HD Diagrams

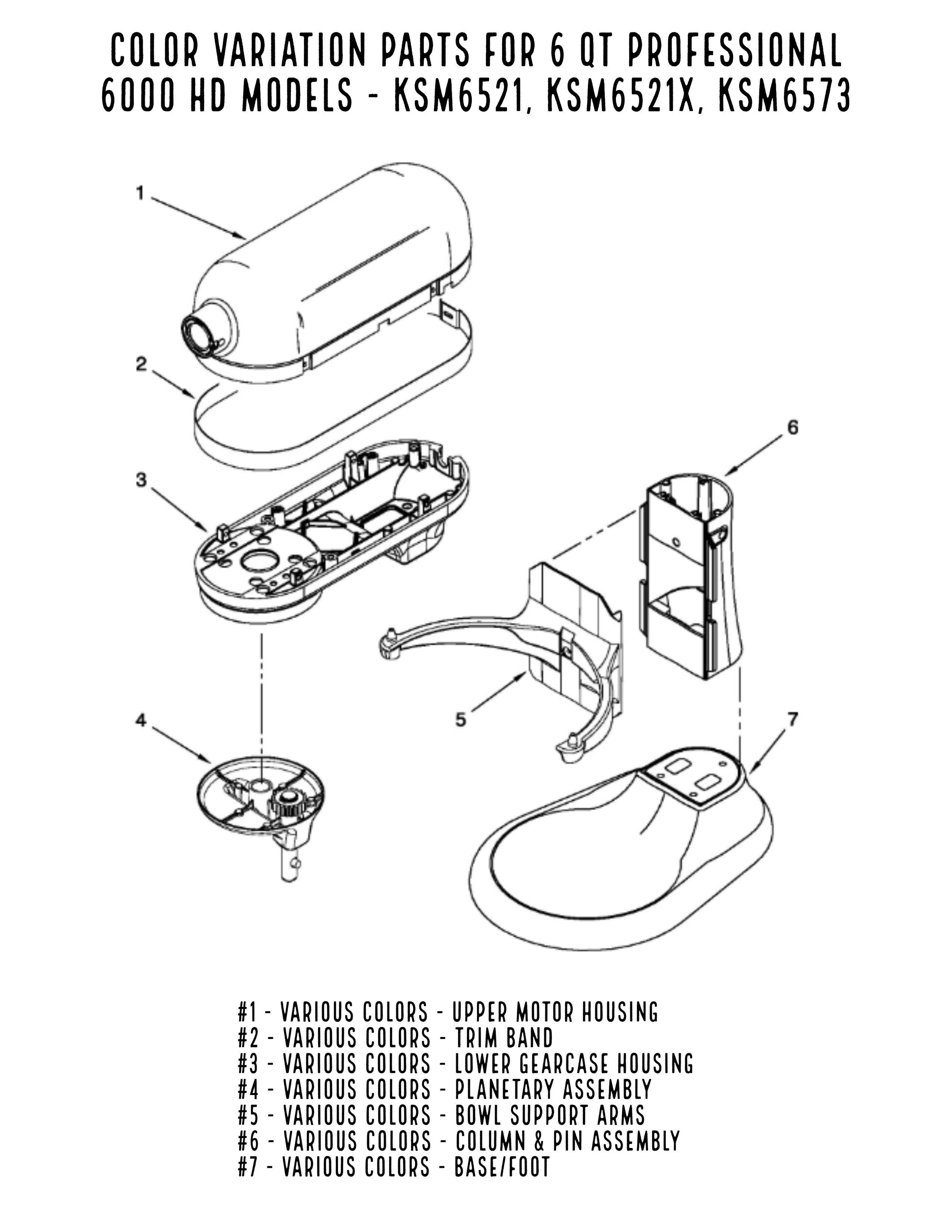

  • Color Variation

    Genuine KitchenAid 6 Quart Professional 6000 HD Color Variation Parts - Upper Motor Housing, Trim Band, Lower Gearcase Housing, Planetary Assembly, Bowl Support Arms, Column & Pin Assembly, Base & Foot Assembly.  These parts come in a large variety of colors; these colors will match your stand mixer.  If you are not sure what color your mixer is, you can refer to our color chart or feel free to email us with your model number and we can help!

    These parts will fit KitchenAid mixer models starting with KSM6521, KSM6521X, KSM6573
    6 Qt Professinal 6000 HD Parts - Color Variation

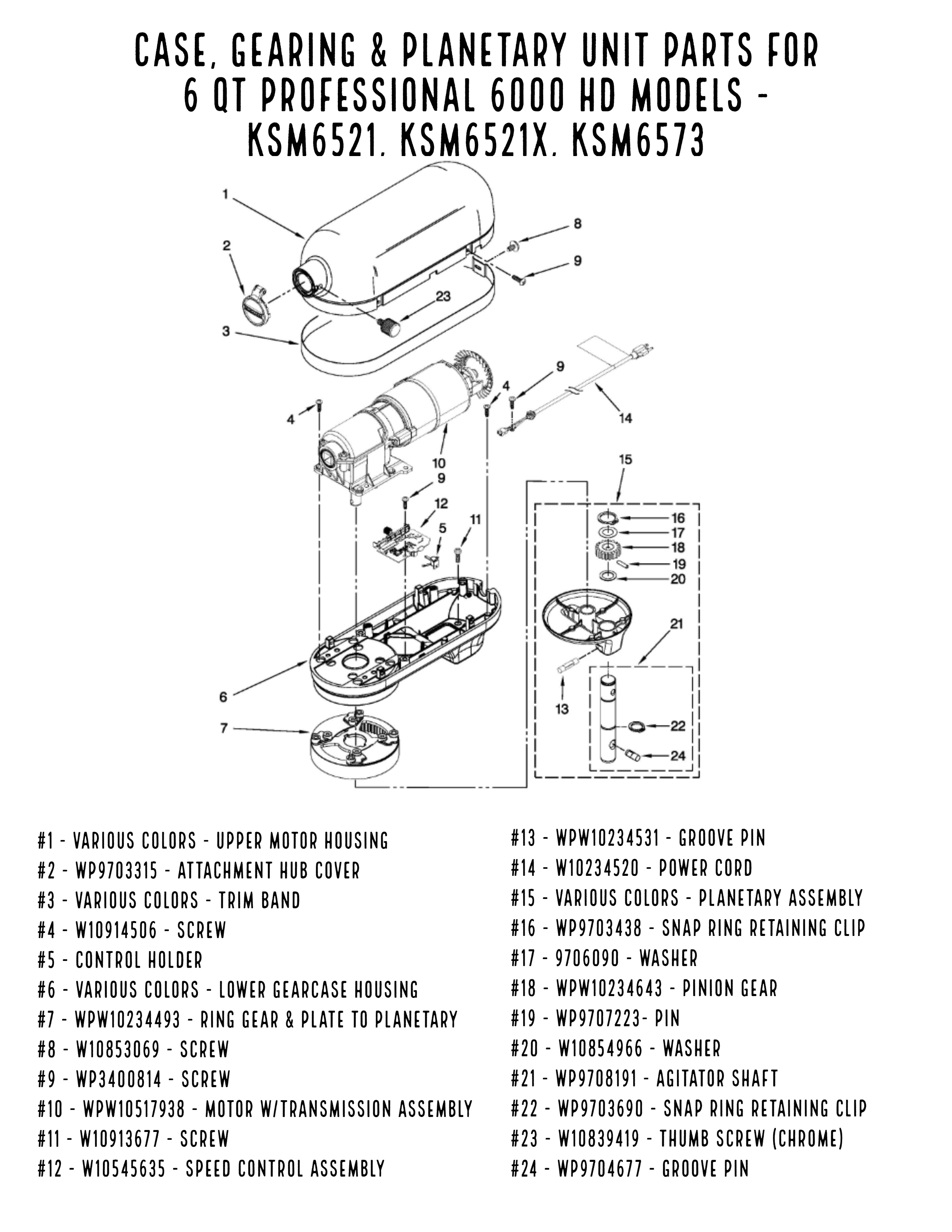

  • Case, Gearing & Planetary Parts

    Genuine KitchenAid 6 Quart Professional 6000 HD Case, Gearing and Planetary Unit Parts - including Attachment Hub, Worm Gear, Mixer Gears, Center Shaft, Gaskets, Agitator Shaft & Planetary Assembly.

    These parts will fit KitchenAid Mixer models starting with KSM6521, KSM6521X, KSM6573
    6 Qt Professinal 6000 HD Parts - Case, Gearing & Planetary Parts

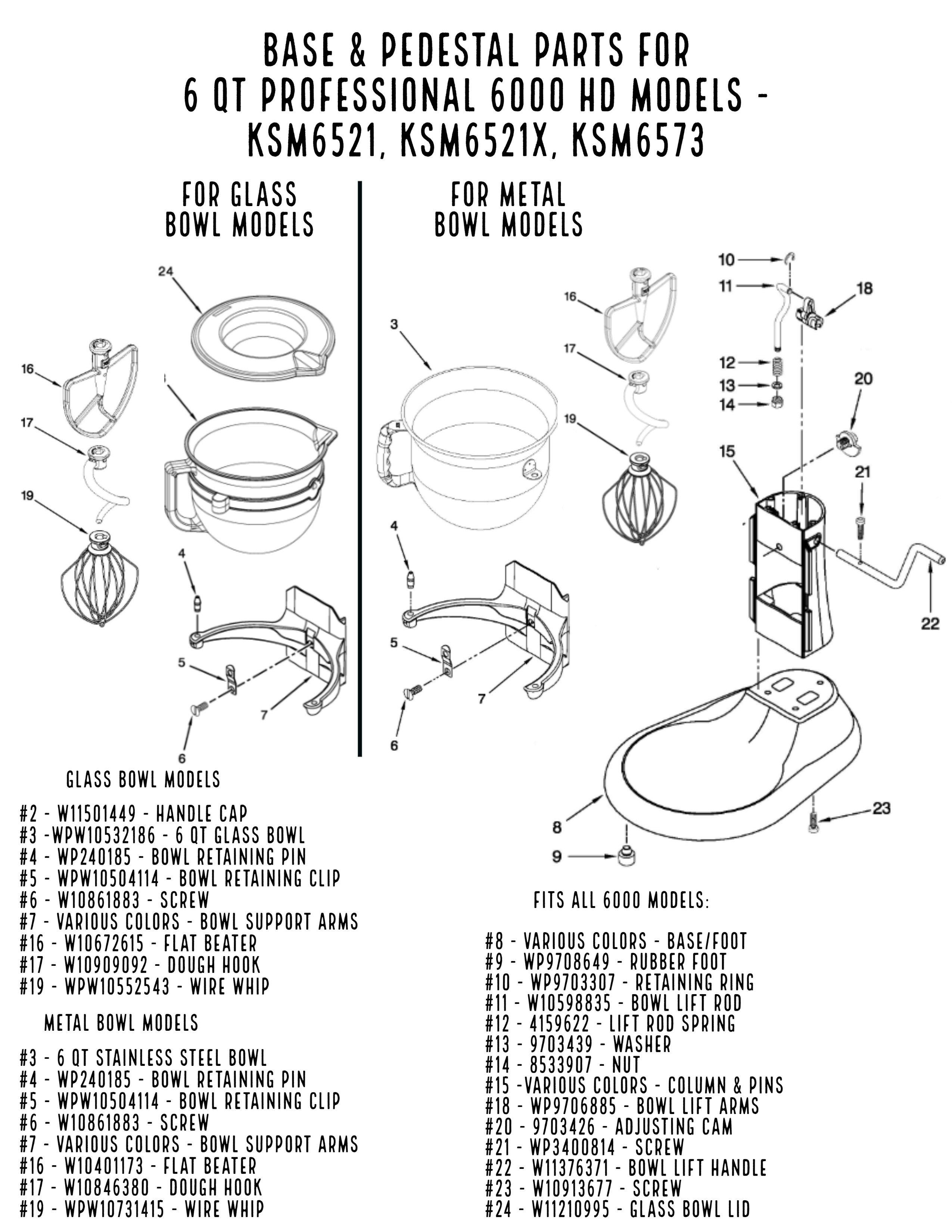

  • Base & Accessories

    Genuine KitchenAid 6 Quart Professional 6000 HD Base & Pedestal Parts - Mixer Bowl, Pouring Shield, Flat Beaters, Dough Hooks, Wire Whips, Bowl Lock Plate, Hinge Pin, Rubber Feet and Bowl Lock Lever Assembly.

    These parts will fit KitchenAid mixer models starting with KSM6521, KSM6521X, KSM6573
    6 Qt Professinal 6000 HD Parts - Base & Accessories
Button label

Color Variation Parts

Case, Gearing & Planetary Unit

Base & Pedestal Parts

6 Qt Professinal 6000 HD Parts
