KitchenAid 5 & 6 Qt Planetary Assembly - Various Colors

Genuine KitchenAid 5 Quart and 6 Quart Professional Planetary Assembly. The planetary assembly is found in all KitchenAid 6 Quart 600 Pro Stand Mixers, as well as 5 Quart mixers including the KitchenAid 5 Qt Professional HD Stand Mixer and the KitchenAid 5 Quart Professional 5 Plus Stand Mixers. This planetary assembly will replace a damaged, separated or bent planetary and comes in many different colors. This is a genuine KitchenAid Stand Mixer replacement part; all of our parts are New Original KitchenAid Parts.

The planetary assembly comes in several colors so that you can match the color exactly to your mixer color. If you are not sure what color planetary to order, you can visit our color code sheet here: KitchenAid Color List or reach out to us by email with your complete model number. The planetary assembly is made up of the agitator shaft that your beaters hook to, a colored housing disc that will match your mixer, a pinion gear and a long center shaft. The planetary housing and center shaft are machine pressed together, if it has separated there is no way to push it back together, the planetary must be replaced. The center shaft goes up into the gearcase of the mixer and it is where the worm follower gear -W11086780 and bevel gear - WP9703337 Sit. Will fit New Generation KitchenAid Mixers KP2671, KP26M1X, KV25, KT2651, KG25, KM25 and variations of these models.

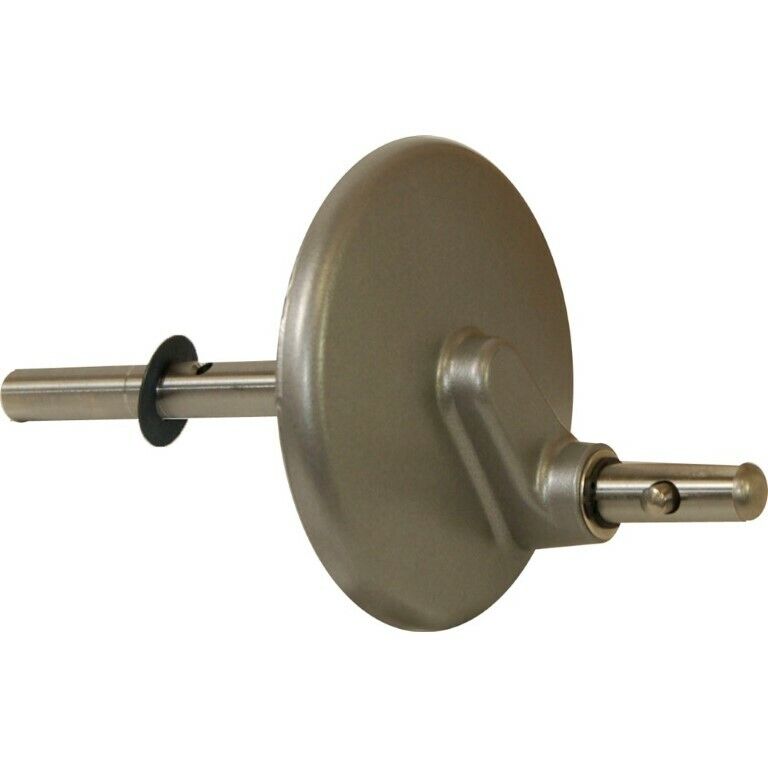

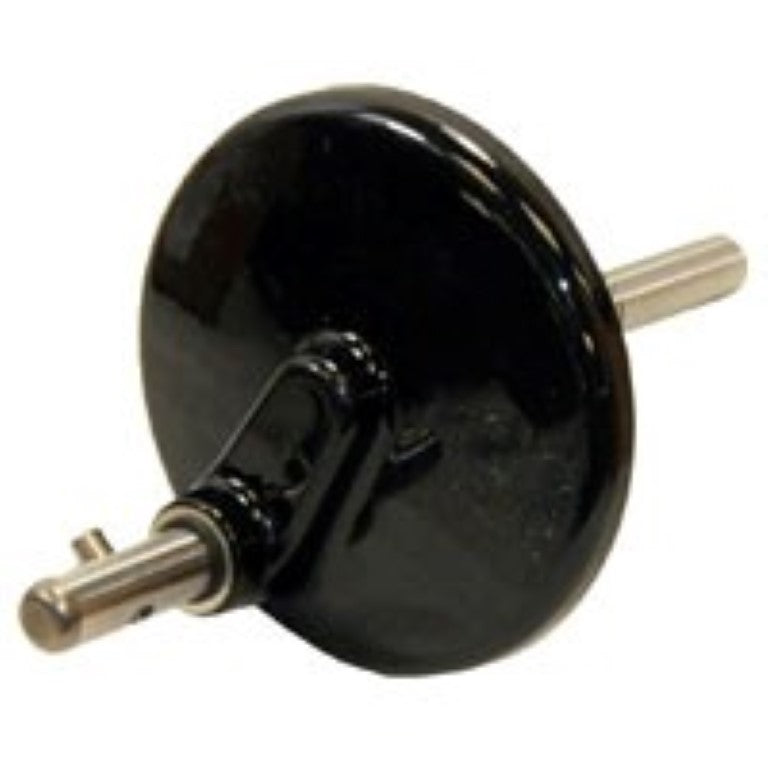

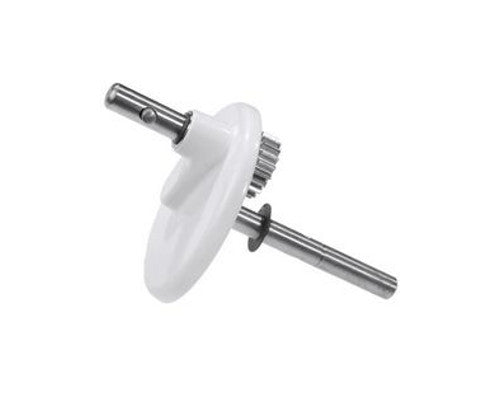

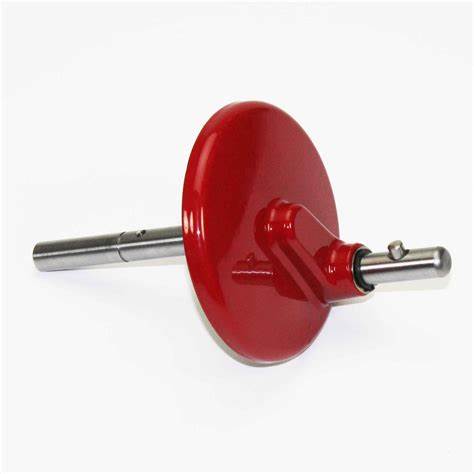

This planetary assembly comes in many colors, the 4 most popular colors are White, WP9708172, Empire Red, WP9708180, Onyx Black, WP9708176 and silver 9709575 made by KitchenAid. PLEASE NOTE, this planetary has been redesigned it no longer has the groove in it for the shaft seal. The new planetary center shaft may appear shorter than your original planetary, but this is only because they come "unpressed' with use, The new planetary is guaranteed to fit all the models listed below, if you are not sure if the planetary will fit your mixer, or your color planetary isn't listed, please send us an email and we will be happy to help.

If you don't need the whole planetary you can order the individual parts here:
For the Fiber Washer click here: Fiber Washer - W11084660
For the Snap Ring click here: Snap Ring - WP9703438
For the Washer click here: Washer - WP9706090
For the Pinion Gear click here: Pinion Gear - W11133646
For the Retaining Pin click here: Retaining Pin - WP9707223
For the Washer click here: Washer - W10854966
For the Agitator Shaft click here: Agitator Shaft - WP9708191


Will fit the following 5 Quart Professional 5 Plus mixers made by KitchenAid:

• KV25G0XWW4 Professional 5 Qt. Stand Mixer
• KV25G0XWH4 Professional 5 Qt. Stand Mixer
• KV25G0XBU4 Professional 5 Qt. Stand Mixer
• KV25G0XCV4 Professional 5 Qt. Stand Mixer
• KV25G0XCY4 Professional 5 Qt. Stand Mixer
• KV25G0XER4 Professional 5 Qt. Stand Mixer
• KV25G0XGR4 Professional 5 Qt. Stand Mixer
• KV25G0XMC4 Professional 5 Qt. Stand Mixer
• KV25G0XOB4 Professional 5 Qt. Stand Mixer
• KV25G0XBW4 Professional 5 Qt. Stand Mixer
• KV25G0XGC4 Professional 5 Qt. Stand Mixer
• KV25G0XWW5 Professional 5 Qt. Stand Mixer
• KV25G0XWH5 Professional 5 Qt. Stand Mixer
• KV25G0XBU5 Professional 5 Qt. Stand Mixer
• KV25G0XCV5 Professional 5 Qt. Stand Mixer
• KV25G0XCY5 Professional 5 Qt. Stand Mixer
• KV25G0XER5 Professional 5 Qt. Stand Mixer
• KV25G0XGR5 Professional 5 Qt. Stand Mixer
• KV25G0XMC5 Professional 5 Qt. Stand Mixer
• KV25G0XOB5 Professional 5 Qt. Stand Mixer
• KV25G0XBW5 Professional 5 Qt. Stand Mixer
• KV25G0XGC5 Professional 5 Qt. Stand Mixer
• KM25G0XWH5 Commercial 5 Qt. Stand Bowl Lift Mixer

• KG25H0X (Series 4) 5 QT. Professional Stand Mixer
• KG25H7X (Series 4) 5 QT. Professional Stand Mixer
• KG25H0X (Series 5) 5 QT. Professional Stand Mixer
• KG25H7X (Series 5) 5 QT. Professional Stand Mixer
• KG25H3X (Series 5) 5 QT. Professional Stand Mixer
• 4KG25H3X (Series 5) 5 QT. Professional Stand Mixer
• KM25G0XWH4 Commercial Mixer
• KV25G0XQ (Series) Professional 5 Qt. Stand Mixer
• 4KV25H0XMC5 Metallic Chrome 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
• 4KV25H0XWH5 White 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
• 4KV25H0XBK5 Imperial Black 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
• 4KV25H0XER5 Empire Red 5 Quart Professional 5 Plus Bowl Lift Stand Mixer
• kg25h7xsl (Silver) 5 QT. Stand Mixer
• kg25h3xwh 5 Qt. Stand Mixer

• KP26M1XMR5 Professional 6 Qt. Stand Mixer
• KP26M1XBS5 Professional 6 Qt. Stand Mixer
• KP26M1XCM5 Professional 6 Qt. Stand Mixer
• KP26M1XDP5 Professional 6 Qt. Stand Mixer
• KP26M1XLC5 Professional 6 Qt. Stand Mixer
• KP26M1XMC5 Professional 6 Qt. Stand Mixer
• KP26M1XNP5 Professional 6 Qt. Stand Mixer
• KP26M1XPM5 Professional 6 Qt. Stand Mixer
• KP26M1XBP5 Professional 6 Qt. Stand Mixer
• KP26M1XBR5 Professional 6 Qt. Stand Mixer
• KP26M1XCE5 Professional 6 Qt. Stand Mixer
• KP26M1XRC5 Professional 6 Qt. Stand Mixer
• KP26M1XSV5 Professional 6 Qt. Stand Mixer
• KP26M1XSE5 Professional 6 Qt. Stand Mixer
• KP26M1XAZ5 Professional 6 Qt. Stand Mixer
• KP26M1XER5 Professional 6 Qt. Stand Mixer
• KP26M1XWG5 Professional 6 Qt. Stand Mixer
• KP26M1XOB5 Professional 6 Qt. Stand Mixer
• KP26M1XWH5 Professional 6 Qt. Stand Mixer
• KP26M1XCV5 Professional 6 Qt. Stand Mixer
• 4KP26M1XMR5 Professional 6 Qt. Stand Mixer
• 4KP26M1XBS5 Professional 6 Qt. Stand Mixer
• 4KP26M1XDP5 Professional 6 Qt. Stand Mixer
• 4KP26M1XLC5 Professional 6 Qt. Stand Mixer
• 4KP26M1XMC5 Professional 6 Qt. Stand Mixer
• 4KP26M1XNP5 Professional 6 Qt. Stand Mixer
• 4KP26M1XPM5 Professional 6 Qt. Stand Mixer
• KP26M1XQBF5 Professional 6 Qt. Stand Mixer
• KP26M1XQBS5 Professional 6 Qt. Stand Mixer
• KP26M1XQBW5 Professional 6 Qt. Stand Mixer
• KP26M1XQCV5 Professional 6 Qt. Stand Mixer
• KP26M1XQER5 Professional 6 Qt. Stand Mixer
• KP26M1XQGC5 Professional 6 Qt. Stand Mixer
• KP26M1XQNP5 Professional 6 Qt. Stand Mixer
• KP26M1XQOB5 Professional 6 Qt. Stand Mixer
• KP26M1XQPM5 Professional 6 Qt. Stand Mixer
• KP26M1XQPT5 Professional 6 Qt. Stand Mixer
• KP26M1XQWH5 Professional 6 Qt. Stand Mixer
• KP26M1XQCE5 Professional 6 Qt. Stand Mixer
• KL26M8XOB5 Proline 6 Qt. Bowl Lift Stand Mixer
• KP26M1XMR4 Professional 6 Qt. Stand Mixer
• KP26M1XBS4 Professional 6 Qt. Stand Mixer
• KP26M1XCM4 Professional 6 Qt. Stand Mixer
• KP26M1XDP4 Professional 6 Qt. Stand Mixer
• KP26M1XLC4 Professional 6 Qt. Stand Mixer
• KP26M1XMC4 Professional 6 Qt. Stand Mixer
• KP26M1XNP4 Professional 6 Qt. Stand Mixer
• KP26M1XPM4 Professional 6 Qt. Stand Mixer
• KP26M1XBP4 Professional 6 Qt. Stand Mixer
• KP26M1XBR4 Professional 6 Qt. Stand Mixer
• KP26M1XCE4 Professional 6 Qt. Stand Mixer
• KP26M1XRC4 Professional 6 Qt. Stand Mixer
• KP26M1XSV4 Professional 6 Qt. Stand Mixer
• KP26M1XSE4 Professional 6 Qt. Stand Mixer
• KP26M1XAZ4 Professional 6 Qt. Stand Mixer
• 4KP26M1XMR4 Professional 6 Qt. Stand Mixer
• 4KP26M1XBS4 Professional 6 Qt. Stand Mixer
• 4KP26M1XDP4 Professional 6 Qt. Stand Mixer
• 4KP26M1XLC4 Professional 6 Qt. Stand Mixer
• 4KP26M1XMC4 Professional 6 Qt. Stand Mixer
• 4KP26M1XNP4 Professional 6 Qt. Stand Mixer
• 4KP26M1XPM4 Professional 6 Qt. Stand Mixer
• KB26G1X (Series 3) 6 QT. Stand Mixer
• KB26G1X (Series 5) 6 QT. Stand Mixer
• KD2661 6 QT. Stand Mixer
• KT2651 6 QT. Stand Mixer
• KP2671 6 QT. Stand Mixer
• KT2651XWW3 6 QT. Stand Mixer
• KD2661X 6 Qt. Stand Mixer
• KT2651X 6 Qt. Stand Mixer
• KP2671X 6 Qt. Stand Mixer
• KP2671-3 6 QT. Stand Mixer
• KT2651?3 6 QT. Stand Mixer
• KD2661?3 6 QT. Stand Mixer
• KP2671XWH1 6 Quart Stand Mixer
• KP2671XWH2 6 Quart Stand Mixer
• KP2671XWH3 6 Quart Stand Mixer
